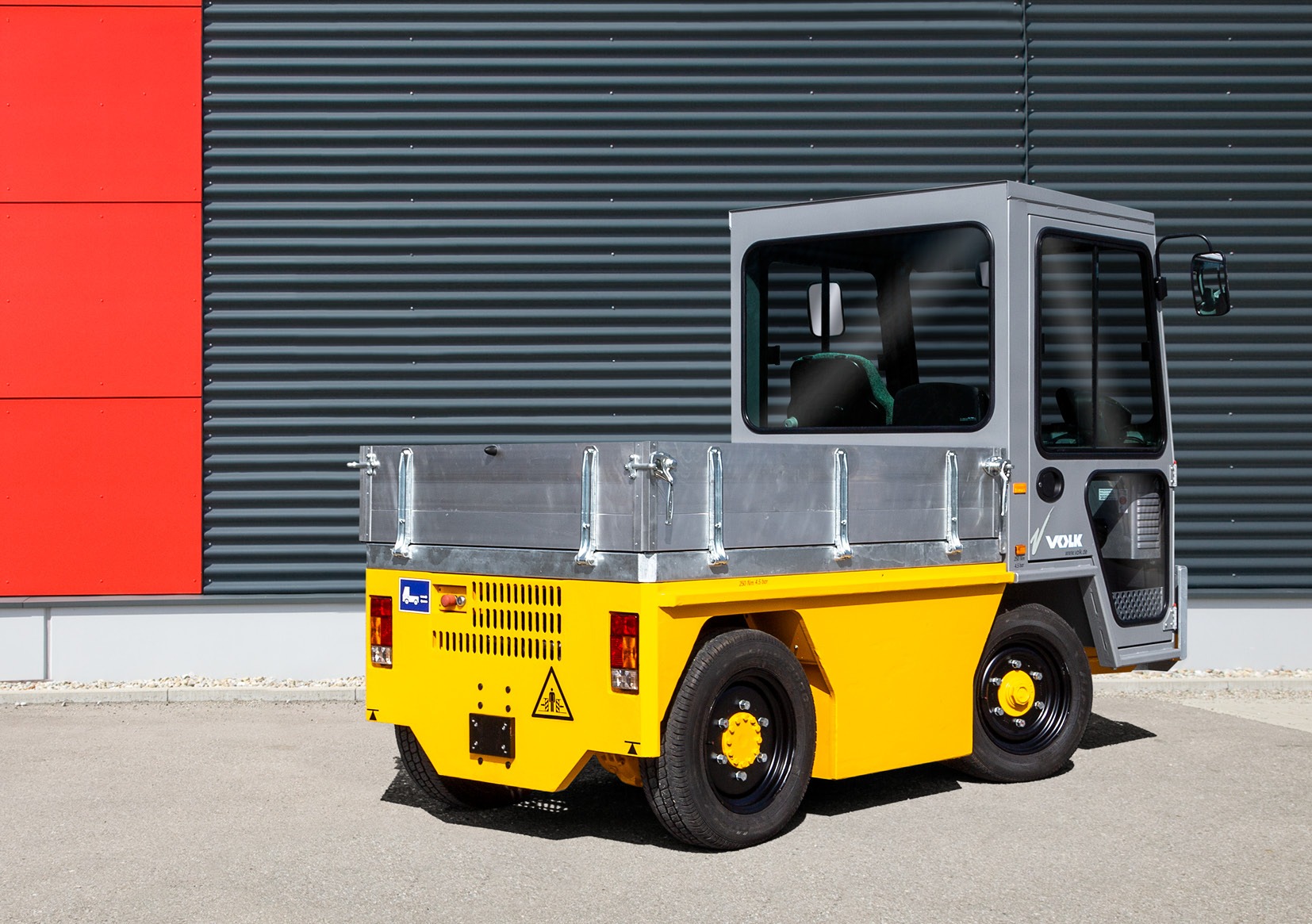

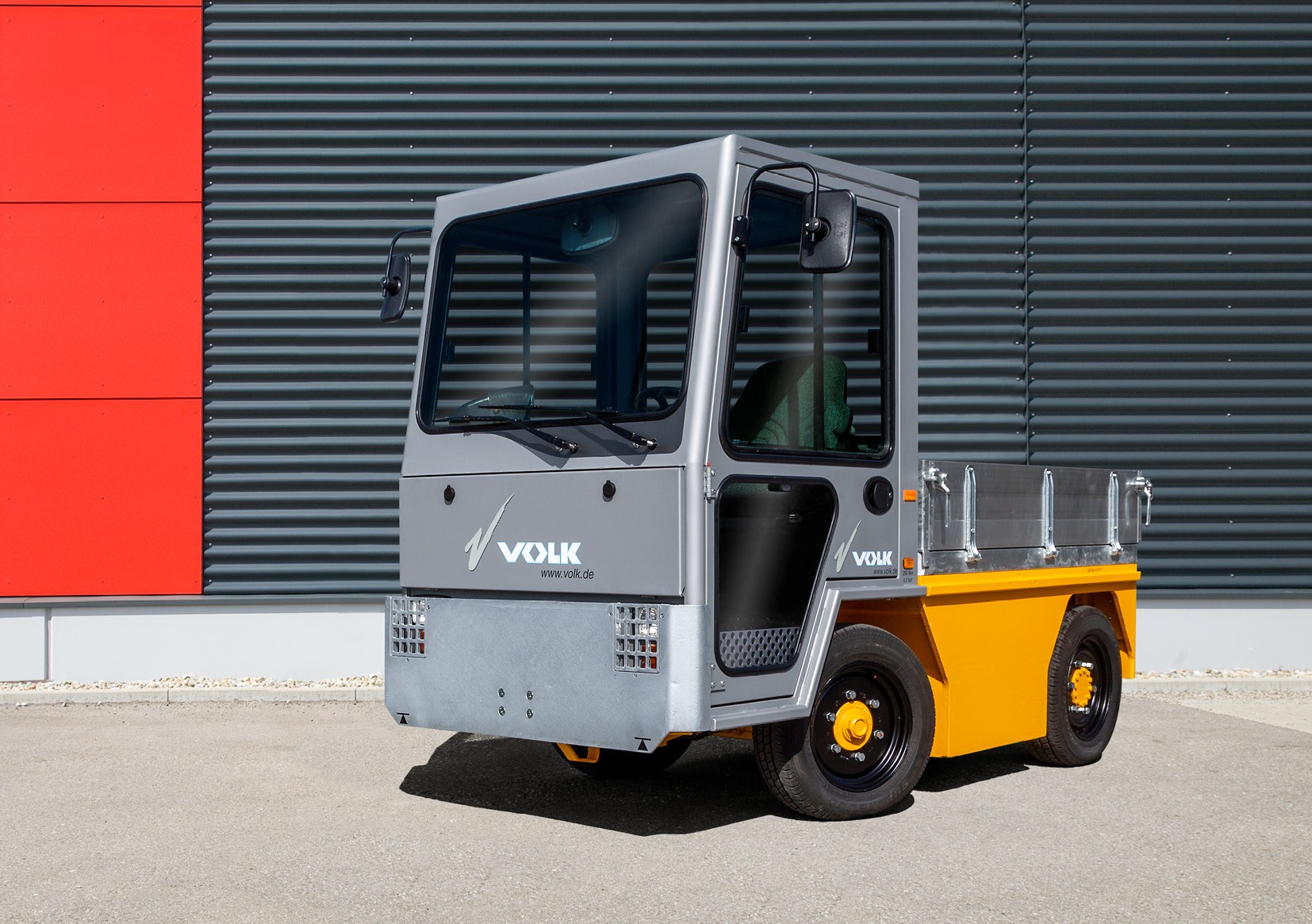

original photo FN262998
EFW 2
Electric platformtruck
Used vehicle
Vehicle equipment
- zinc dipping frame
- solid steel front bumper
- heater
- defroster
- interior light
- co‐driver seat
- inching control, rear side
- crawling switch
Vehicle data
| Vehicle no. | FN262998 | |
| Year of construction | 06/2005 | |
| Operating hours | n.a. | |
general overhaul | 2020 |
Performance
| Payload | Payload on loading area | 4.400 lbs |
Towing capacity | Maximum towing capacity | 41.250 lbs |
Drawbar pull | Peak performance (5 min rating) | 2.700 lbf |
Driving speed | without towed load | 15,0 mph |
Drive
Electric motor | Performance (60 min rating) | 14,0 kW (ac) |
| Battery | Capacity | 80 V / 320 Ah |
Dimensions
Length | 3.040 mm | |
Width | 1.250 mm | |
Height | 1.970 mm | |
platform length | 1.750 mm | |
platform width | 1.250 mm | |
Turning radius (outsided chassis) | 3.465 mm | |
Weight | 7.500 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
