EFW 2

Electric platform truck

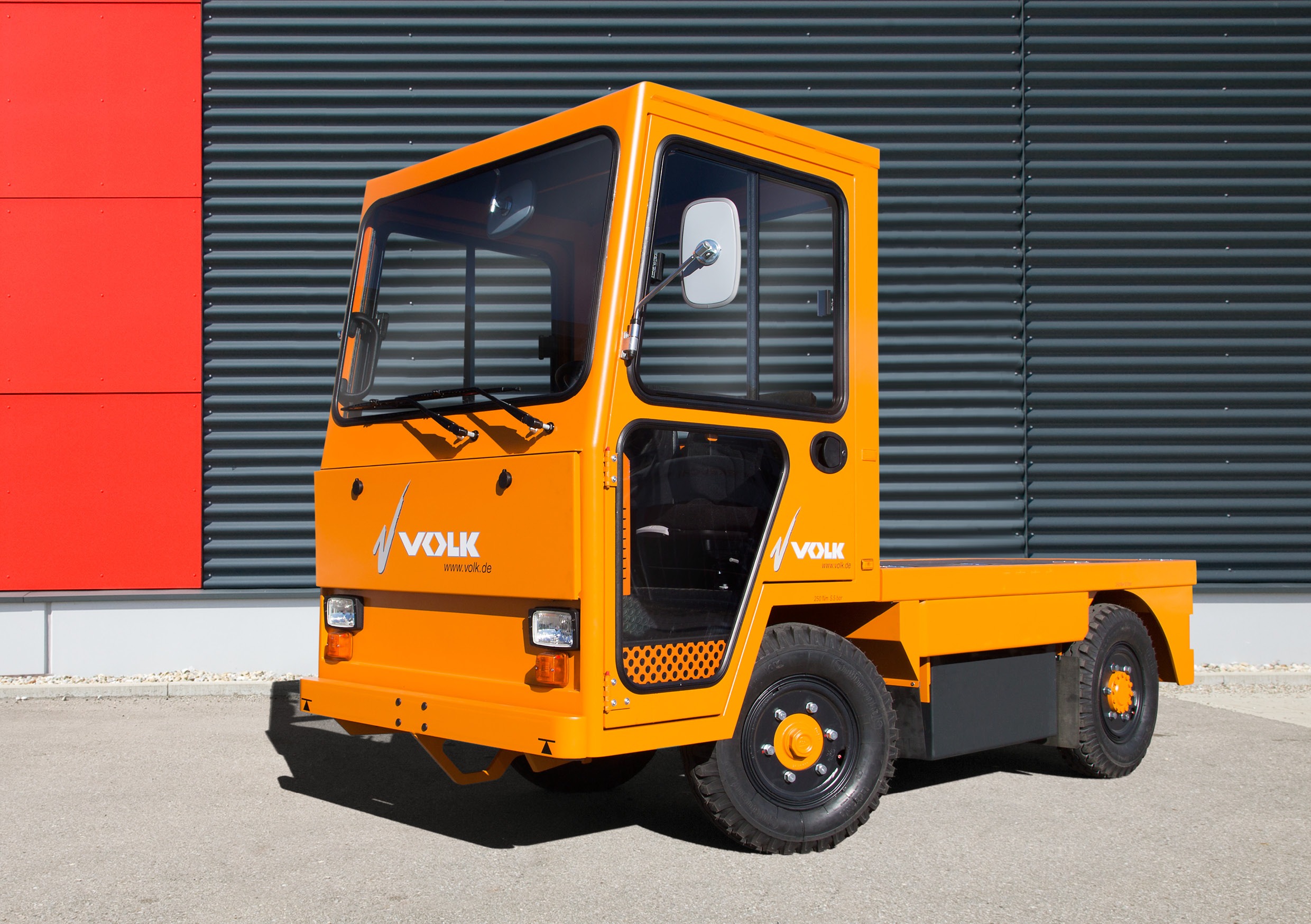

The VOLK EFW 2 Electric Platform Truck comes with a sensitive and low-maintenance AC drive and is therefore perfectly equipped for demanding everyday tasks. Its spacious loading platform can handle 4.400 lbs of payload. A variety of accessory options makes it possible to tailor the configuration to each individual case: tarpaulin structures, load-through platforms for long material or loading cranes are only a few of the many available extras. A large battery capacity of up to 80V/575 Ah gives it a wide range. In multi-shift operations, the battery can also be quickly and easily exchanged from the side. Its appealing and functional design adds a finishing touch to its appearance.

Performance
Payload Payload on loading area

4.400 lbs

Towing capacity Maximum towing capacity

22.000 lbs

Drawbar pull

Maximum drawbar pull (5 min rating)

1.300 lbf
Driving speed

without payload

16 mph

Drive

Electric motor

Performance (60 min rating)

7.5 kW (ac)

Battery

Standard capacity

80 V / 320 Ah

Maxium capacity 80 V / 575 Ah
Dimensions

Length

3.480 mm

3.780 mm

Width

1.250 mm

Height

2.100 mm

platform length

2.200 mm 2.500 mm

platform width

1.250 mm

Turning radius (outside chassis)

3.820 mm

Weight

6.215 lbs 6.325 lbs

No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
