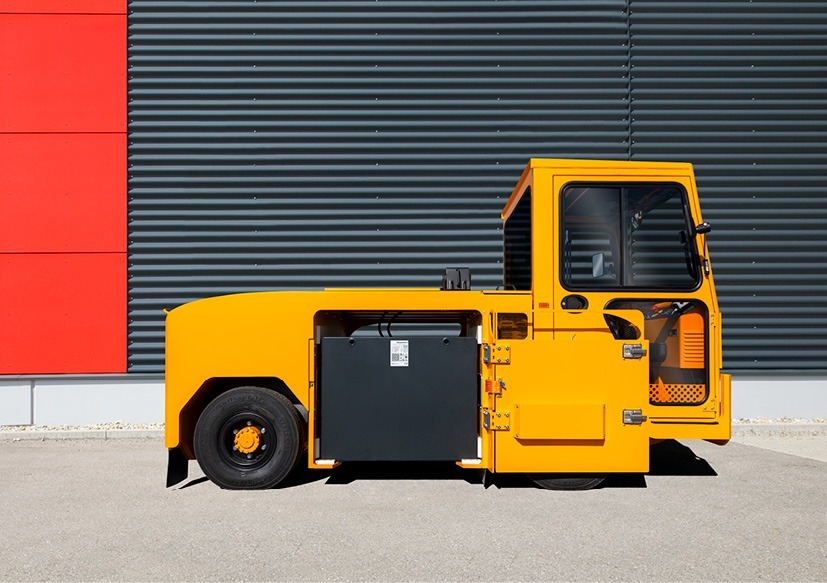

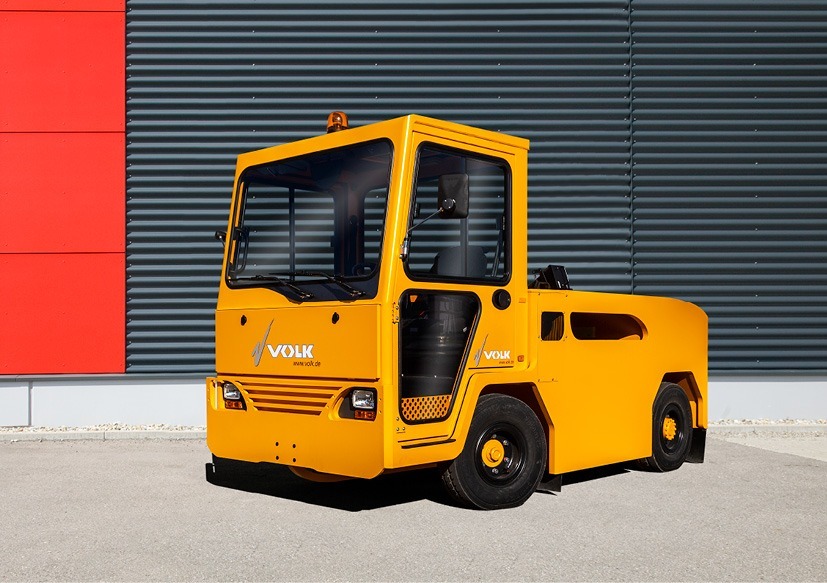

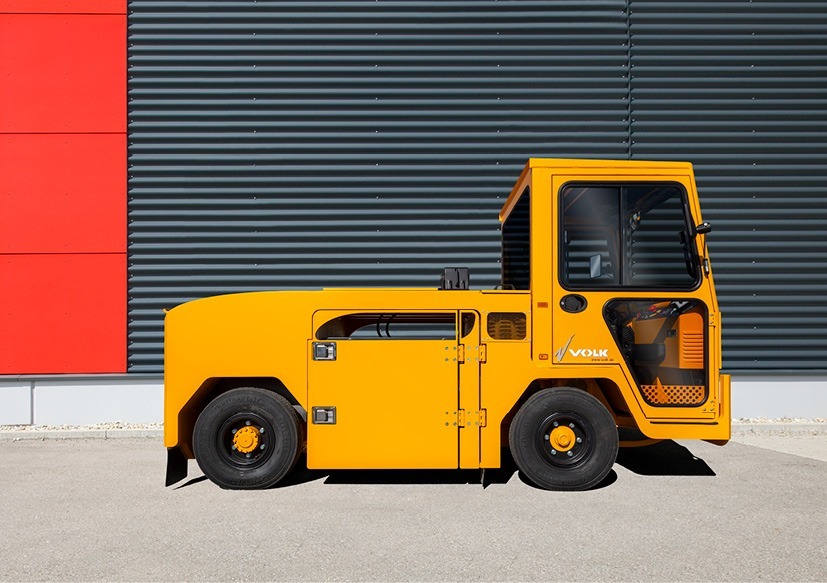

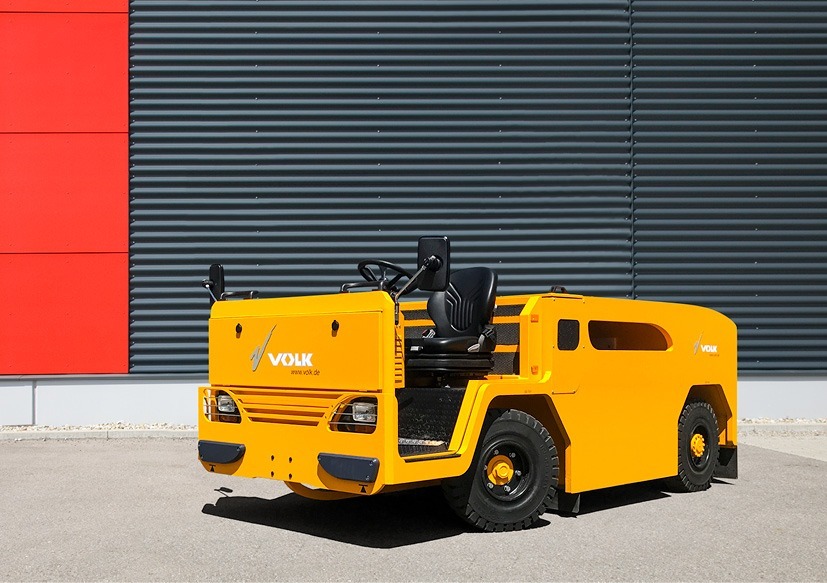

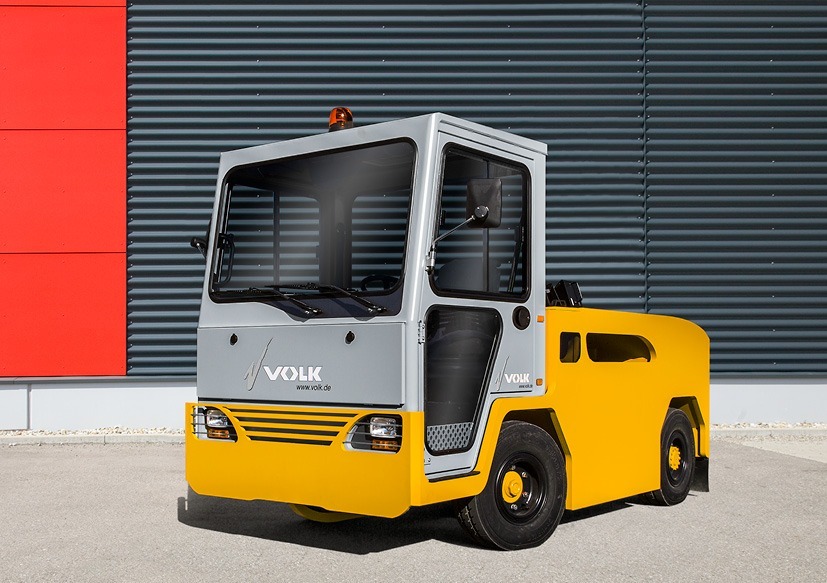

EFZ 40 N

Electric tow tractor

Performance
Towing capacity Maximum towing capacity

88.000 lbs

Drawbar pull

Maximum drawbar pull (5 min rating)

6.714 lbf
Driving speed

without towed load

13.0 mph

with 88.000 lbs towed load

5.6 mph

Drive

Electric motor

Performance (60 min rating)

20 kW (ac)

Battery

Standard capacity

80 V / 700 Ah

Maximum battery capacity 80 V / 1.085 Ah
Dimensions

Length

3.540 mm

Width

1.500 mm

Height

2.100 mm

Turning radius (outside chassis)

4.130 mm

Weight

14.800 lbs

No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
