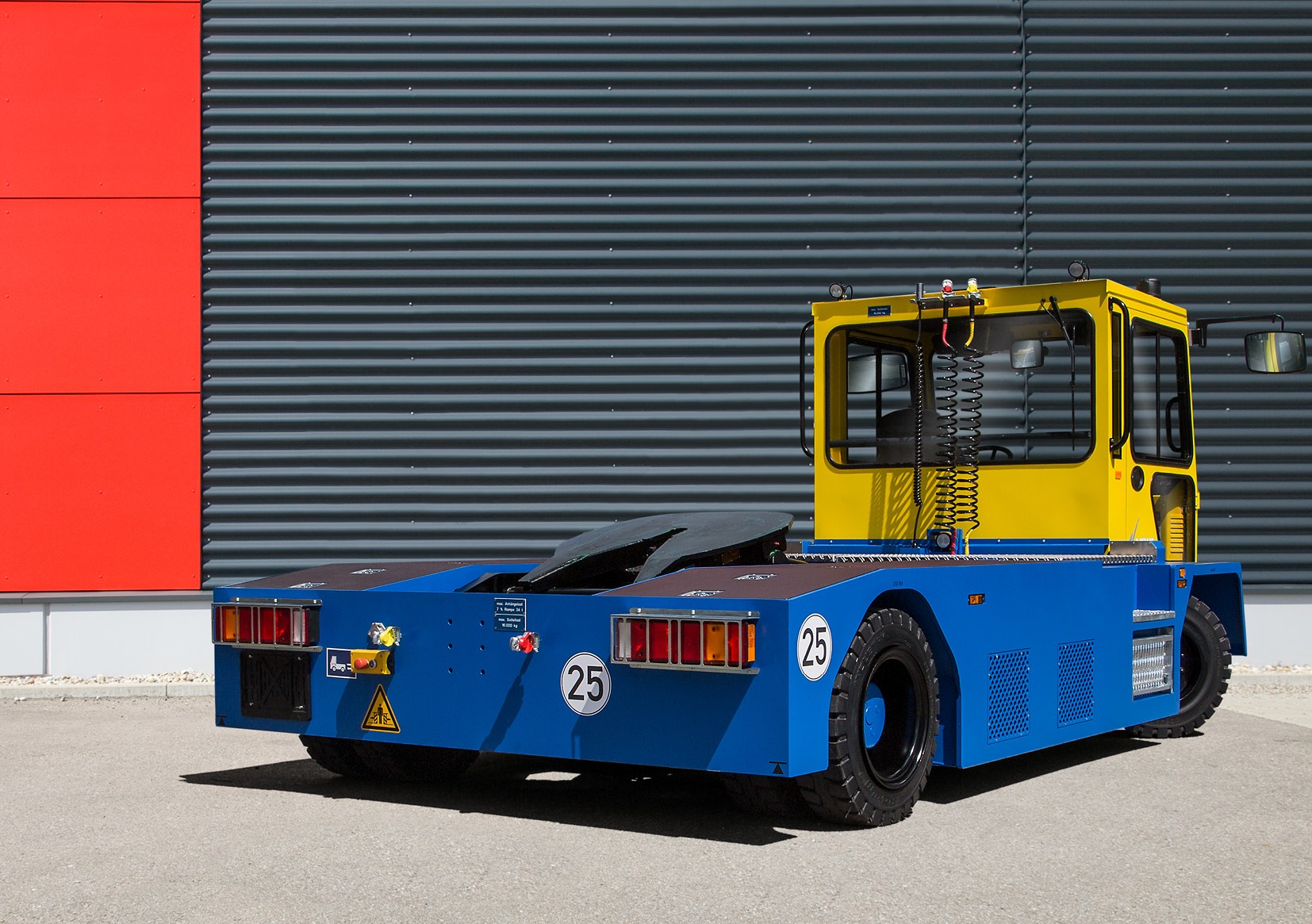

EFZ 40 SK

Electric tow tractor

Performance
Towing capacity Maximum towing capacity

88.000 lbs

Fifth-wheel load 35.200 lbs
Drawbar pull Maximum drawbar pull (5 min rating) 9.100 lbf
Driving speed

without towed load

13.0 mph

with 88.000 lbs towed load

4.0 mph

Drive

Electric motor

Performance (60 min rating)

38 kW (ac)

Battery

Maximum battery capacity

80 V / 1.250 Ah

Dimensions

Length

4.870 mm

Width

2.400 mm

Height

2.100 mm

Turning radius (outside chassis)

5.950 mm

Weight

21.200 lbs

No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
