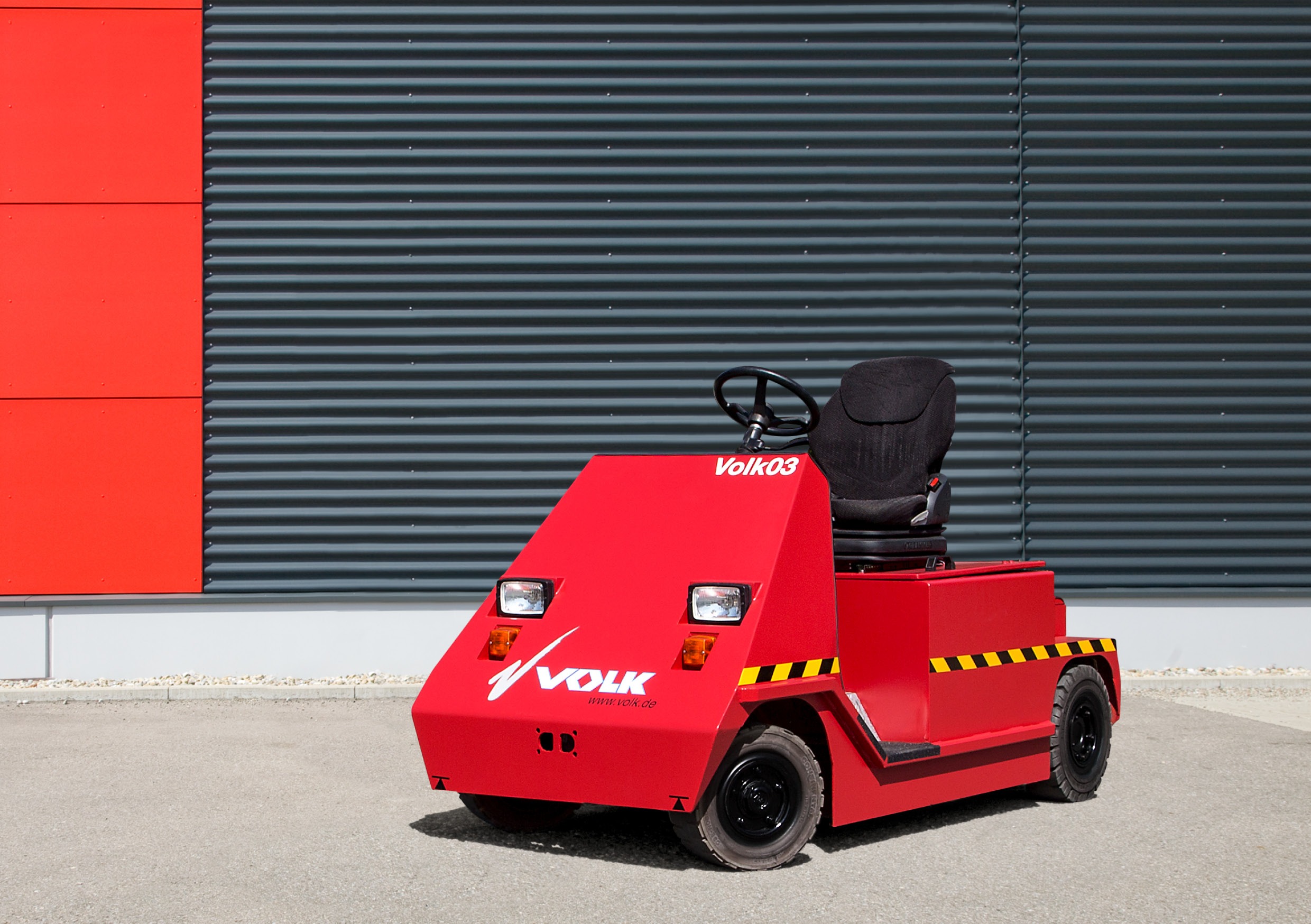

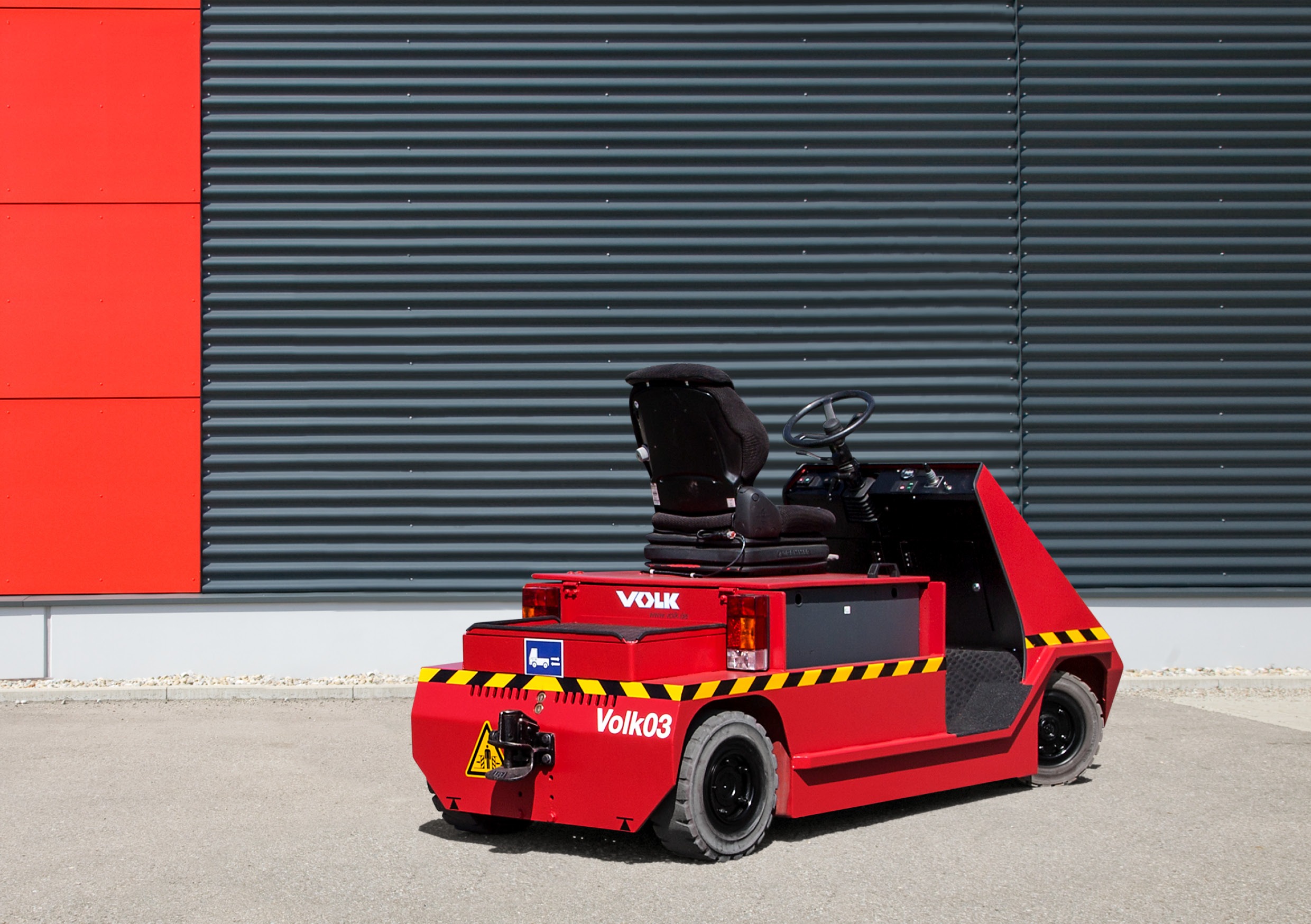

Original photo FN063468
EFZ 20 K
Electric tow tractor
Used vehicle
The VOLK EFZ 20 K Electric Tow Tractor was designed especially for use in narrow spaces. With its extremely compact dimensions, it clearly stands out from the competition in the performance class of up to 20.000 kg towing load. A powerful twin-motor AC drive with an electronic differential lock and a large vehicle weight guarantee a maximum degree of safety and traction even under adverse track conditions or when operating on ramps. A high battery capacity of up to 48 V/750 Ah gives it a wide range. In multi-shift operations, the battery can also be quickly and easily changed from the side. For use outside, there is of course the option of a fully-equipped driver’s cab.
Vehicle data
| Vehicle no. | FN063468 | |
| Year of construction | 09/2007 | |
| Operating hours | 5.600 h | |
general overhaul | 2017 |
Performance
| Towing capacity | Maximum towing capacity | 44.000 lbs |
Drawbar pull | Peak performance (5 min rating) | 2.148 lbf |
Driving speed | without towed load | 11,2 mph |
with 44000 lbs towed load | 4,3 mph |
Drive
Electric motor | Performance (60 min rating) | 2 x5 kW (ac) |
| Battery | Capacity | 48 V / 690 Ah |
Dimensions
Length | 2.142 mm | |
Width | 1.070 mm | |
Height | 1.350 mm | |
Turning radius (outsided chassis) | 2.710 mm | |
Weight | 4.840 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
