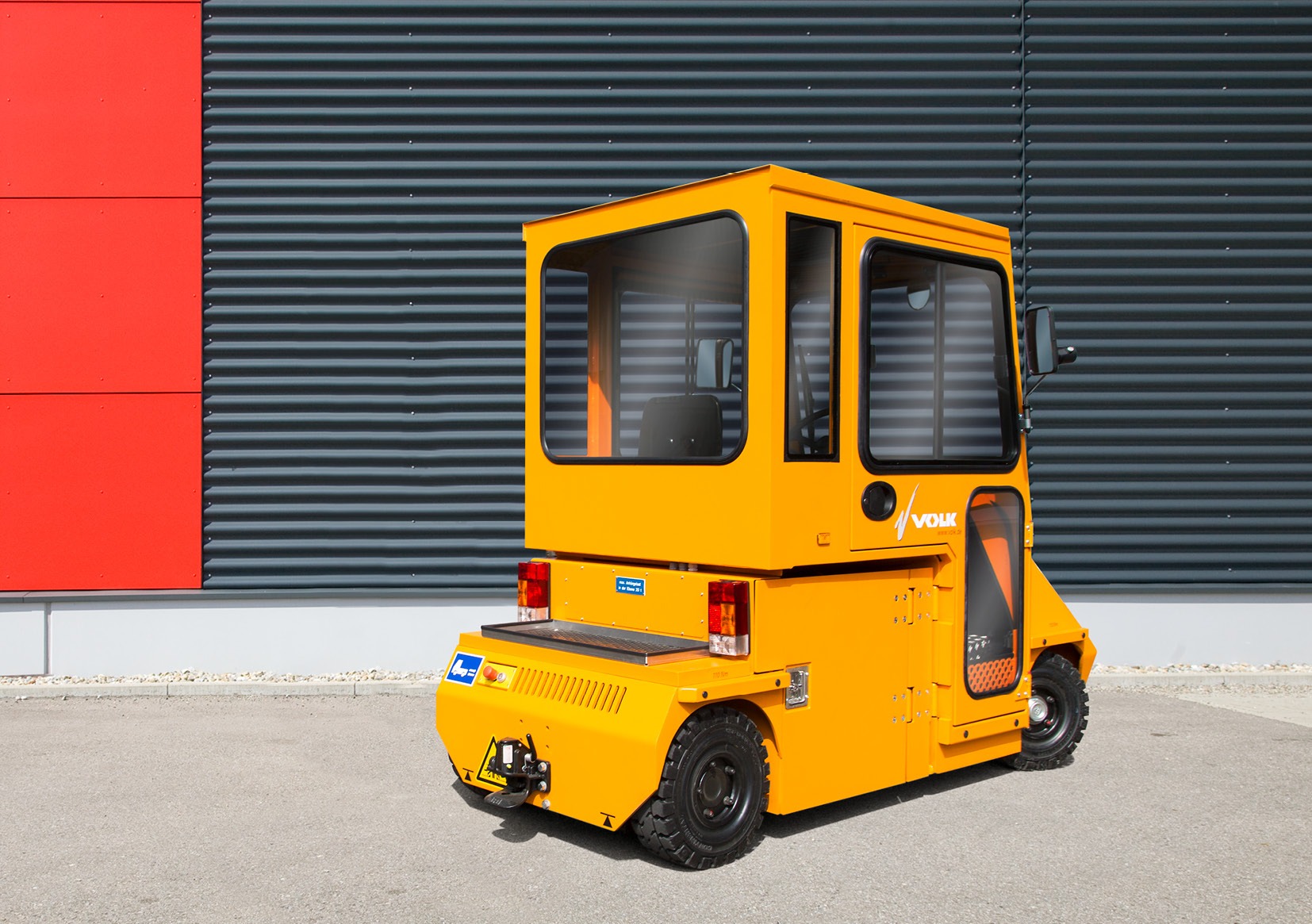

EFZ 20 K

Electric tow tractor


The VOLK EFZ 20 K Electric Tow Tractor was designed especially for use in narrow spaces. With its extremely compact dimensions, it clearly stands out from the competition in the performance class of up to 20.000 kg towing load. A powerful twin-motor AC drive with an electronic differential lock and a large vehicle weight guarantee a maximum degree of safety and traction even under adverse track conditions or when operating on ramps. A high battery capacity of up to 48 V/750 Ah gives it a wide range. In multi-shift operations, the battery can also be quickly and easily changed from the side. For use outside, there is of course the option of a fully-equipped driver’s cab.

Performance
Towing capacity Maximum towing capacity

44.000 lbs

Drawbar pull

Maximum drawbar pull (5 min rating)

2.150 lbf
Driving speed

without towed load

11.0 mph

with 44.000 lbs towed load

4.0 mph

Drive

Electric motor

Performance (60 min rating)

2 x 5 kW (ac)

Battery

Maximum battery capacity

48 V / 750 Ah

Dimensions

Length

2.400 mm

Width

1.070 mm

Height

1.350 mm

Turning radius (outside chassis)

3.000 mm

Weight

5.225 lbs
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
