EFZ 3.5 K

Electric tow tractor

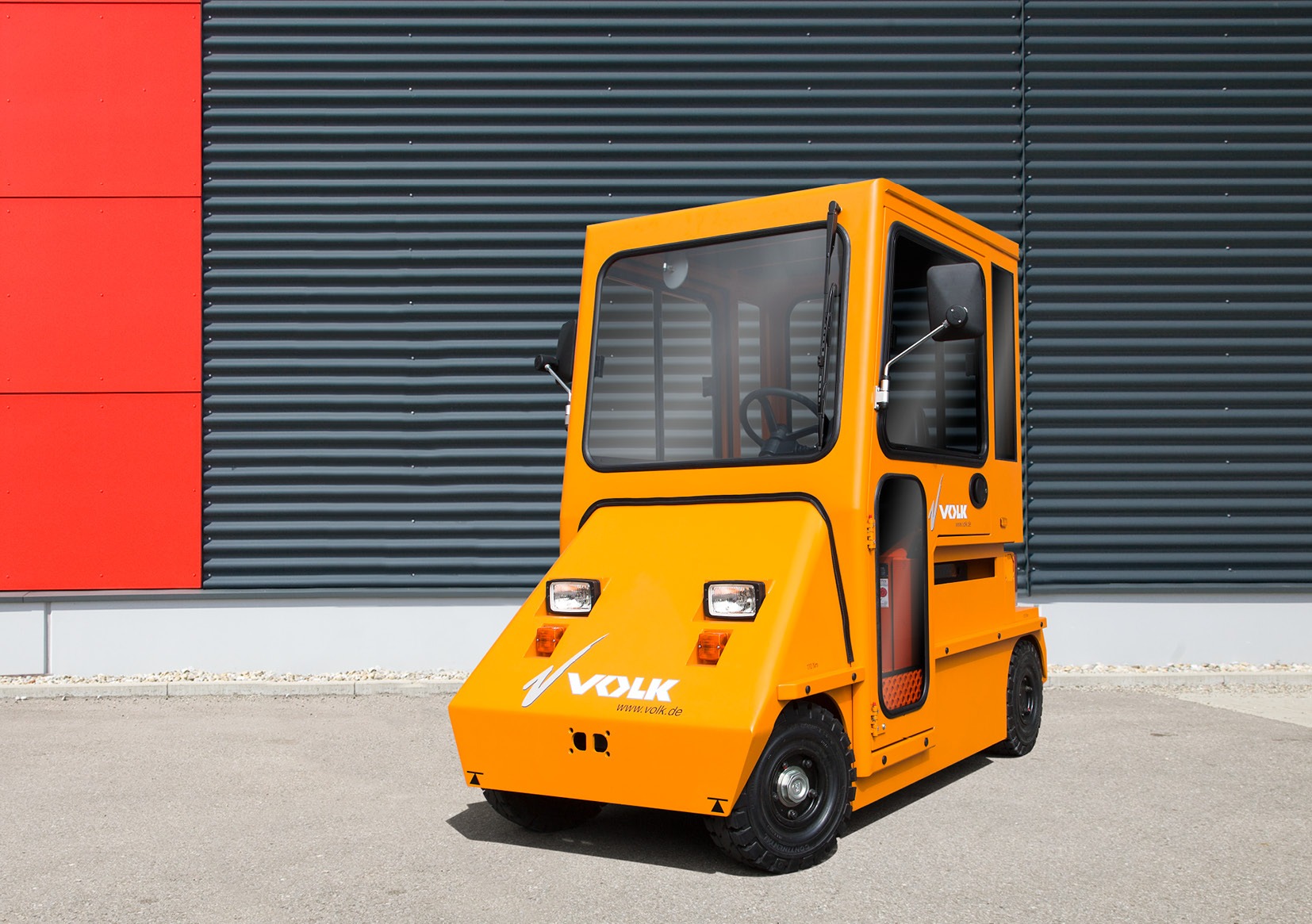

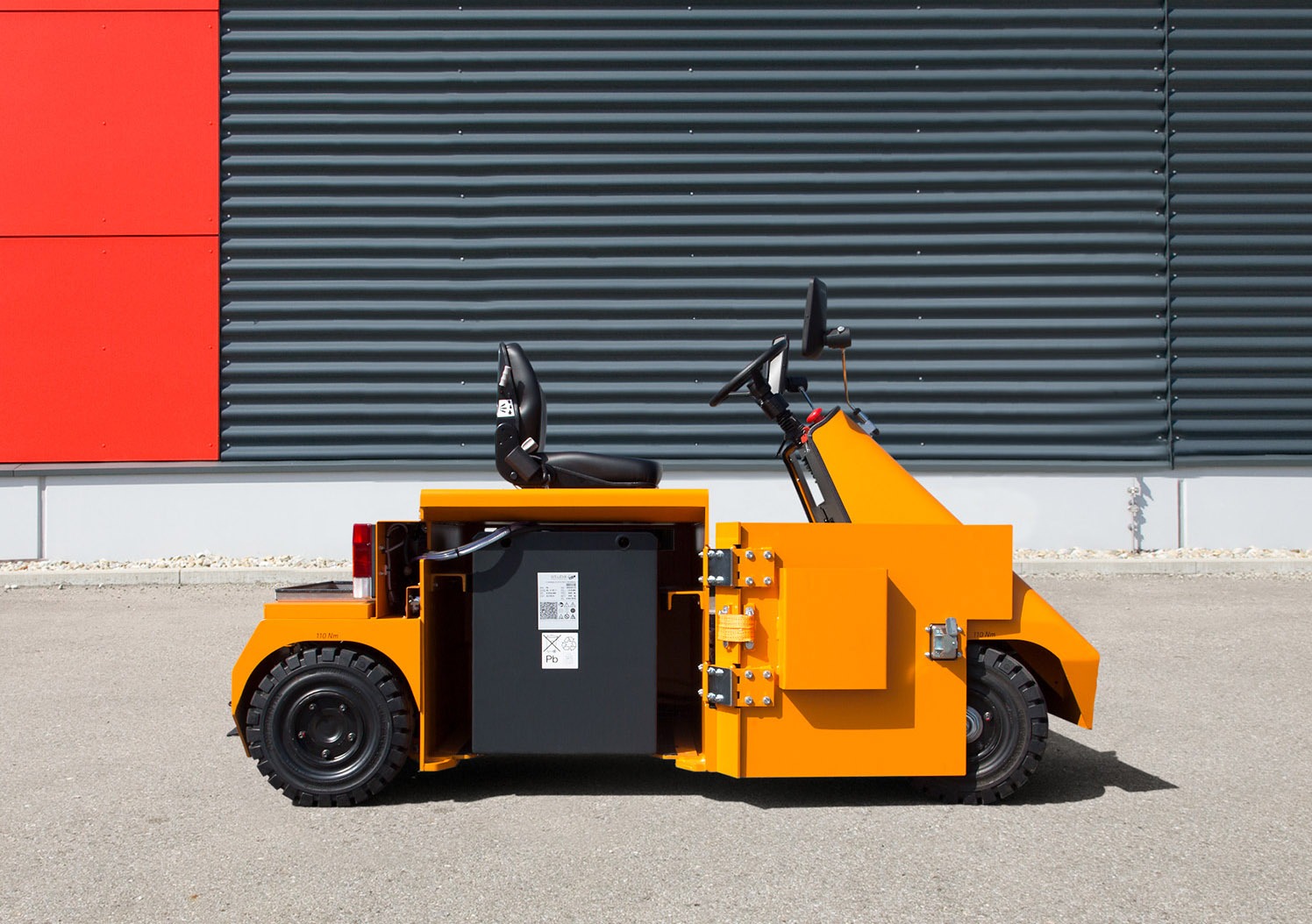

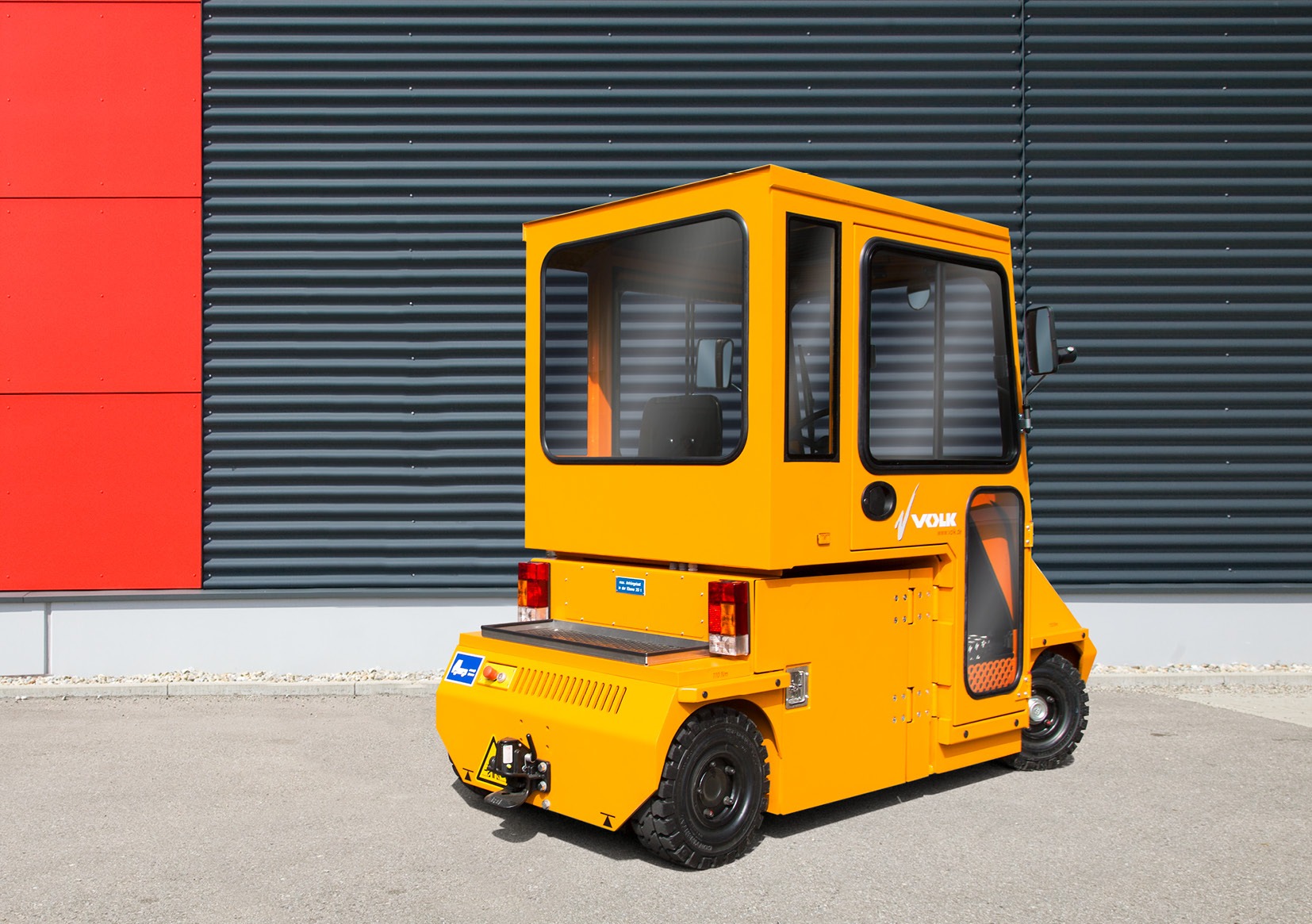

The VOLK EFZ 3.5 K Electric Tow Tractor was developed especially for challenging areas of use in which a maximum of driving safety is paramount. Its 4-wheel design guarantees a maximum degree of stability and braking deceleration when necessary – when it is being used on ramps or in poor track conditions, for example. The robust chassis, made of solid steel, can easily handle tough conditions. The powerful AC drive facilitates agile driveability even with 3.500 kg towed load. For the use in multi-shift environments, the tractor can be optionally equipped with a lateral battery door which facilitates a quick and easy battery change. For use outside, there is of course the option of a fully-equipped driver’s cab.
Performance
Towing capacity Maximum towing capacity

7.700 lbs

Drawbar pull

Maximum drawbar pull (5 min rating)

470 lbf
Driving speed

without towed load

13.6 mph

with 7.700 lbs towed load

4.3 mph

Drive

Electric motor

Performance (60 min rating)

2 kW (ac)

Battery

Standard capacity

24 V / 625 Ah

Maximum battery capacity24 V / 920 Ah
Dimensions

Length

1.950 mm

Width

970 mm

Height

1.350 mm

Turning radius (outside chassis)

2.480 mm

Weight

2.640 lbs

No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
