Original photo FN262669
EFW 2

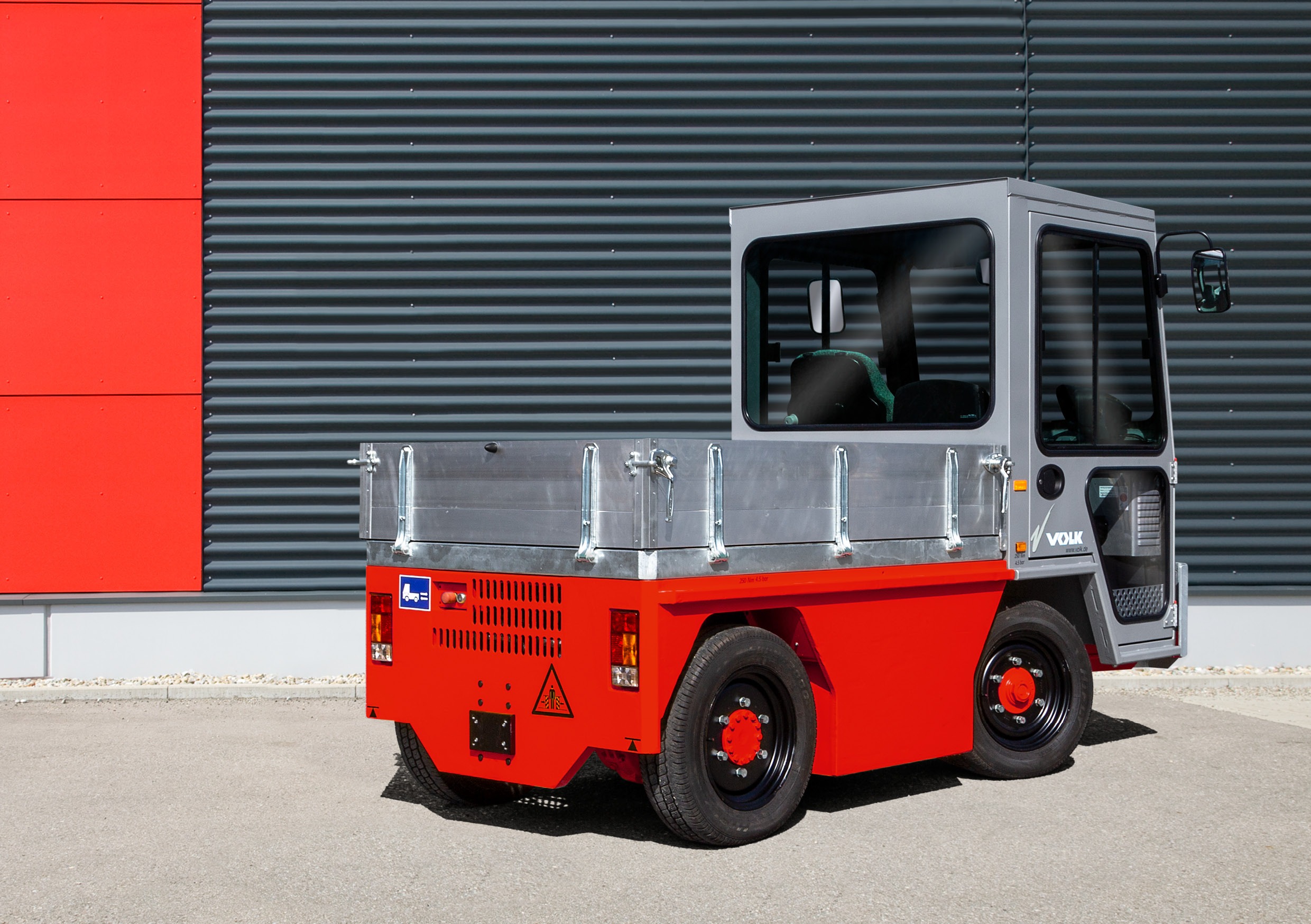

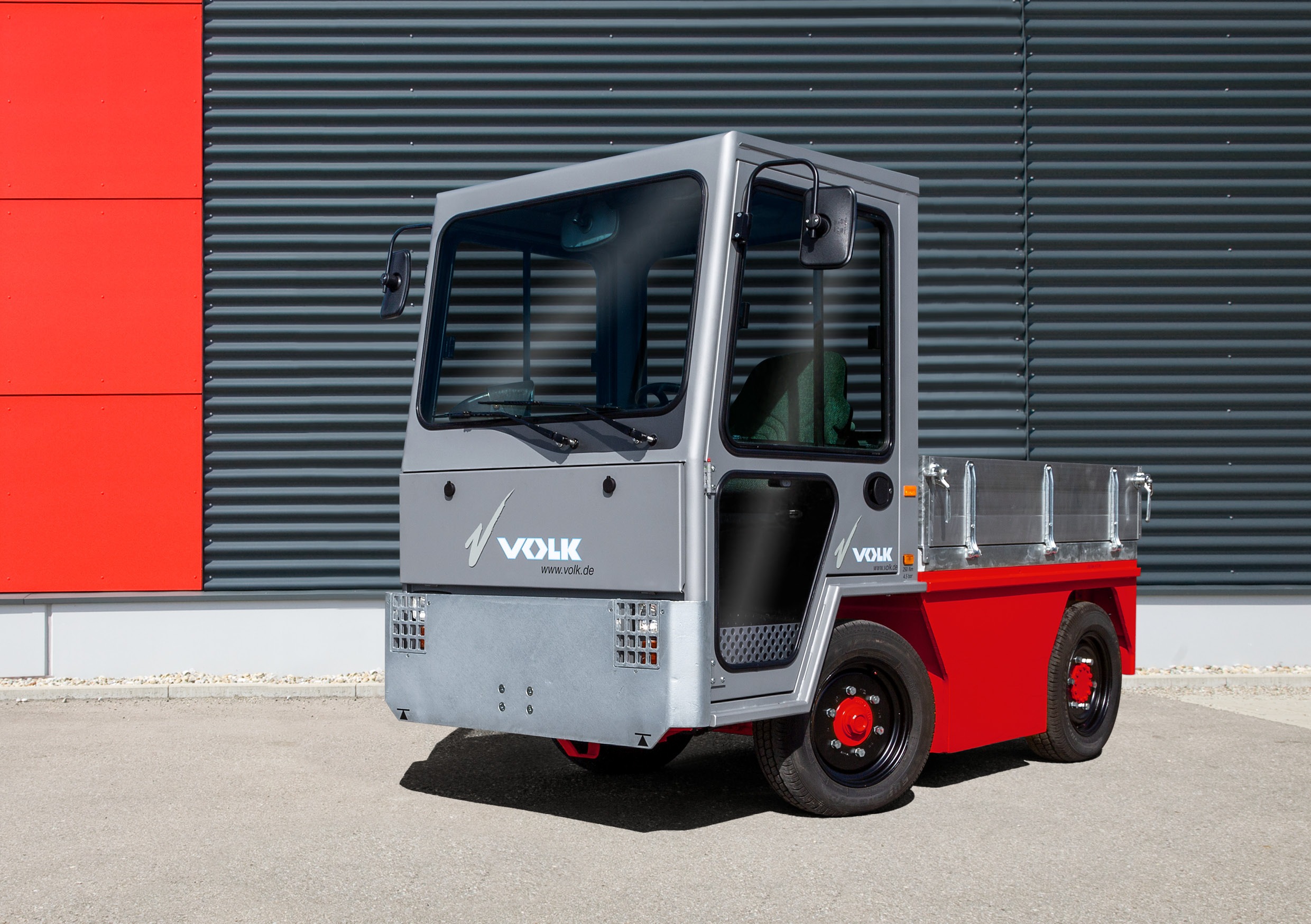

Electric platform truck
Used vehicle
Vehicle equipment
- zinc dipping frame
- solid steel front bumper
- heater
- defroster
- fresh air shutter
- air supspended driver seat
- co‐driver seat
- inching control, rear side
- crawling switch
- video rear-view system for towing hitch
- automatic towing hitch Rockinger
- towing bar safety-catch
Vehicle data
| Vehicle no. | FN262669 | |
| Year of construction | 05/2003 | |
| Operating hours | n.a. | |
general overhaul | 12/2022 |
Performance
| Payload | on loading area | 4.400 lbs |
Drawbar pull | Maximum drawbar pull (5 min rating) | 3.100 lbf |
Driving speed | without payload | 15,0 mph |
Drive
Electric motor | Performance (60 min rating) | 14,0 kW (ac) |
| Battery | Capacity | 80 V / 320 Ah |
Dimensions
Length /Width / Height | 3.040 / 1.250 / 1.970 mm | |
Platform: Length / Width | 1.750 / 1.250 mm | |
Turning radius (outsided chassis) | 3.465 mm | |
Weight | 7.500 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
