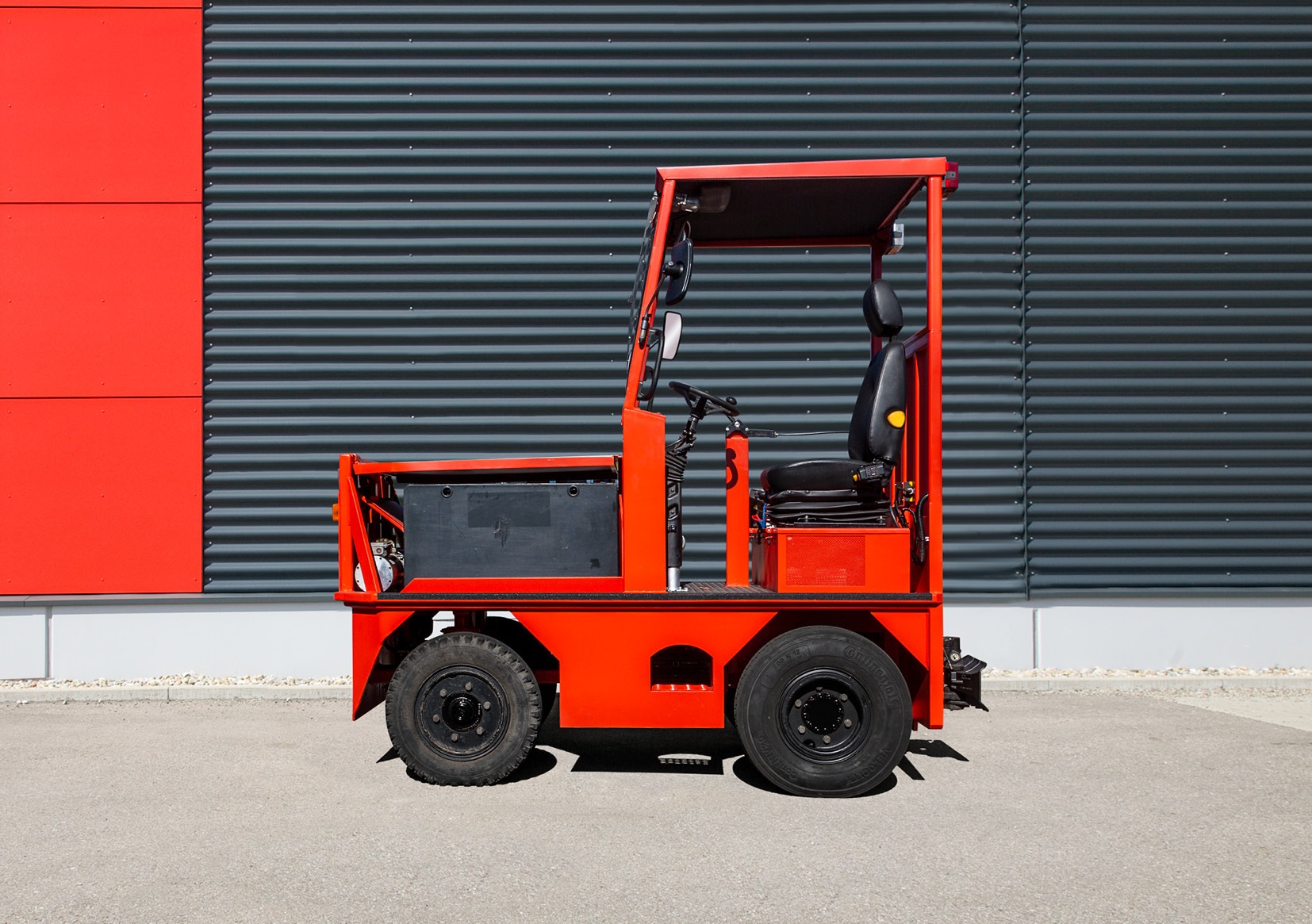

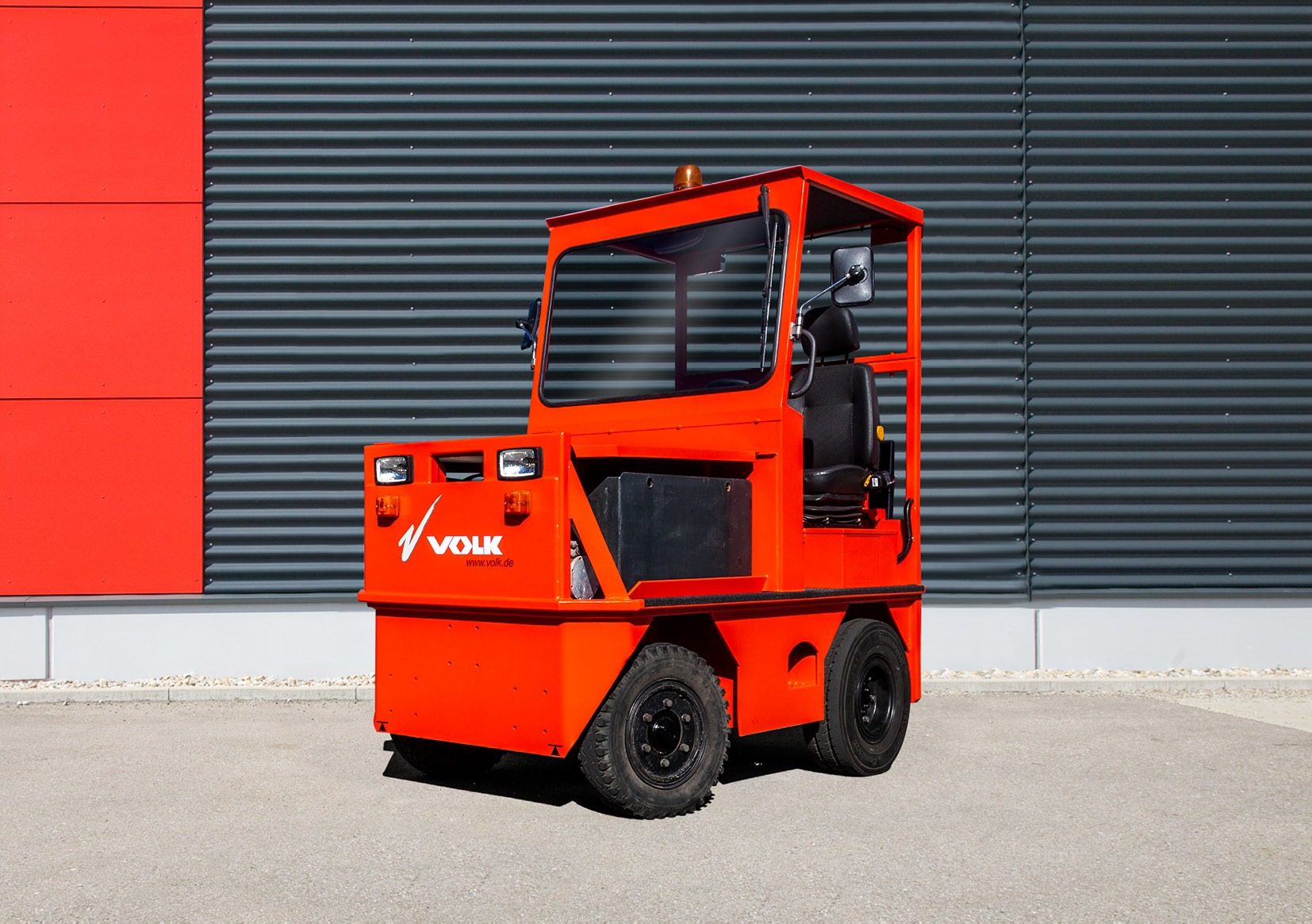

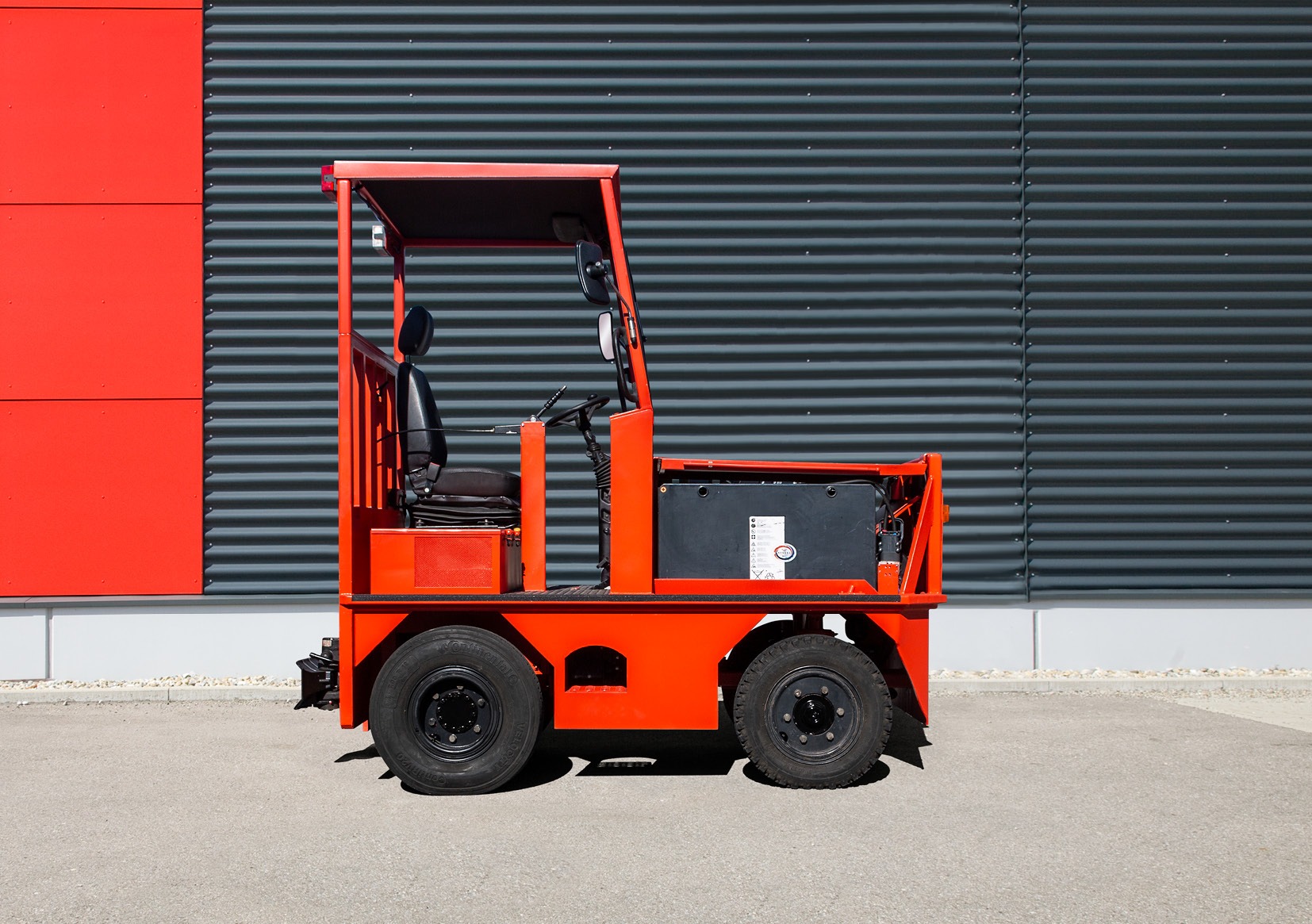

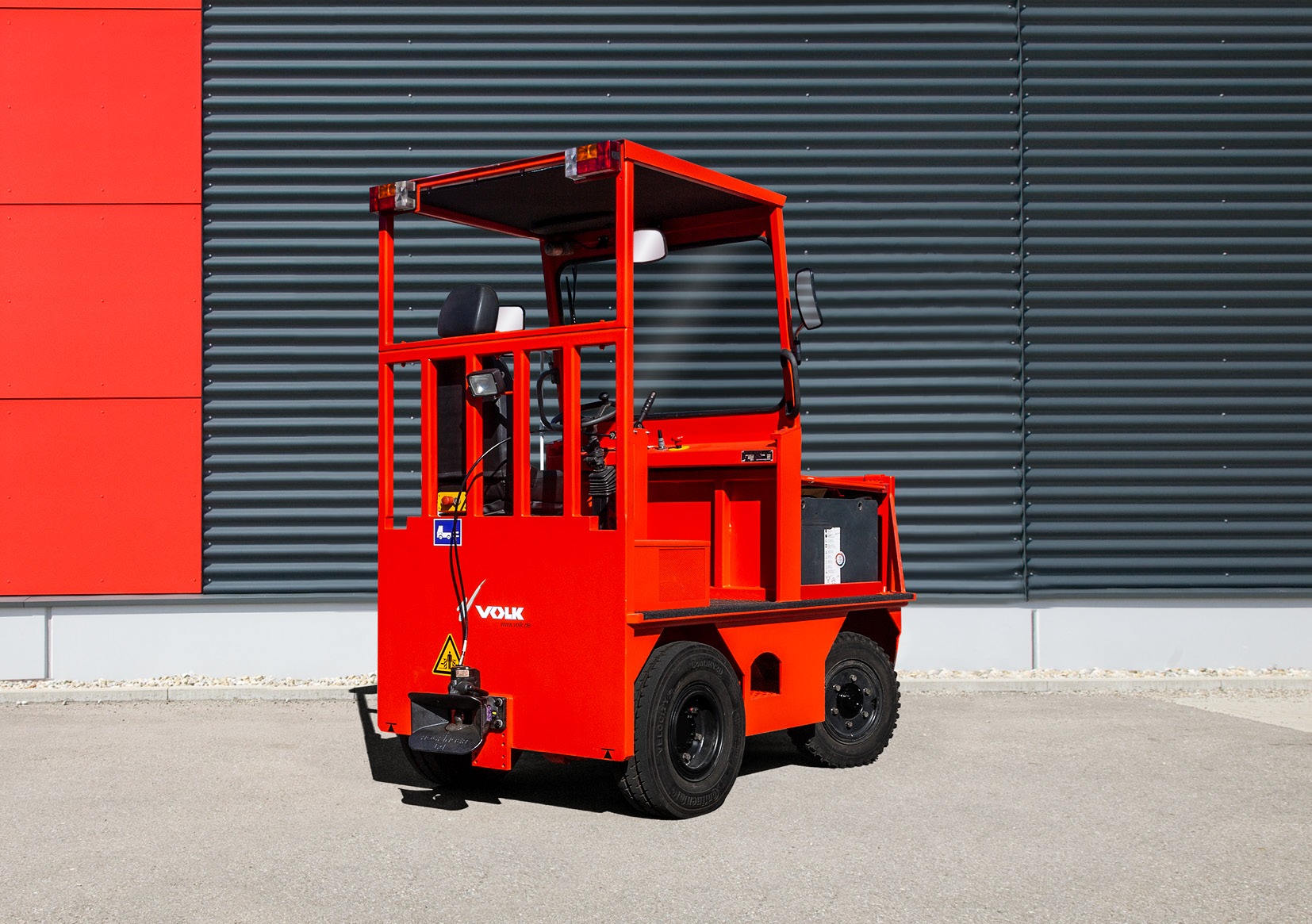

Original photo FN903873

EFZ 20 H

Electric tow tractor

Used vehicle

Vehicle data
Vehicle no.

FN903873

Year of construction

12/2009

Operating hours

4.850 h

general overhaul

2019

Performance
Towing capacity

Maximum towing capacity

44.000 lbs

Drawbar pull

Peak performance (5 min rating)

2.148 lbf

Driving speed

without payload

11,2 mph

Drive

Electric motor

Performance (60 min rating)

14 kW (ac)

Battery

Capacity

80 V / 400 Ah

Dimensions

Length

2.530 mm

Width

1.250 mm

Height

2.460 mm

Turning radius (outsided chassis)

2.373 mm

Weight

3.850 kg
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
