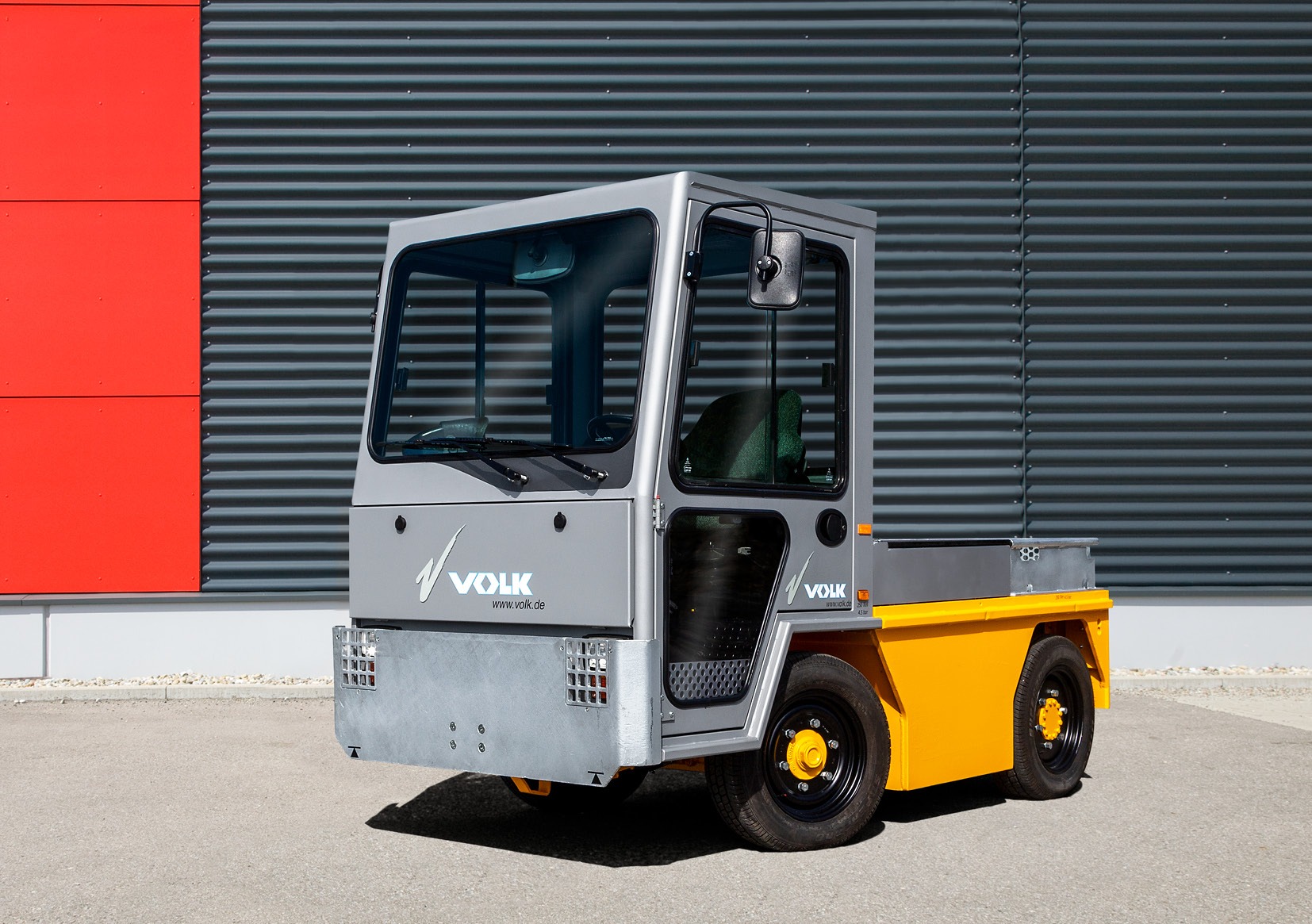

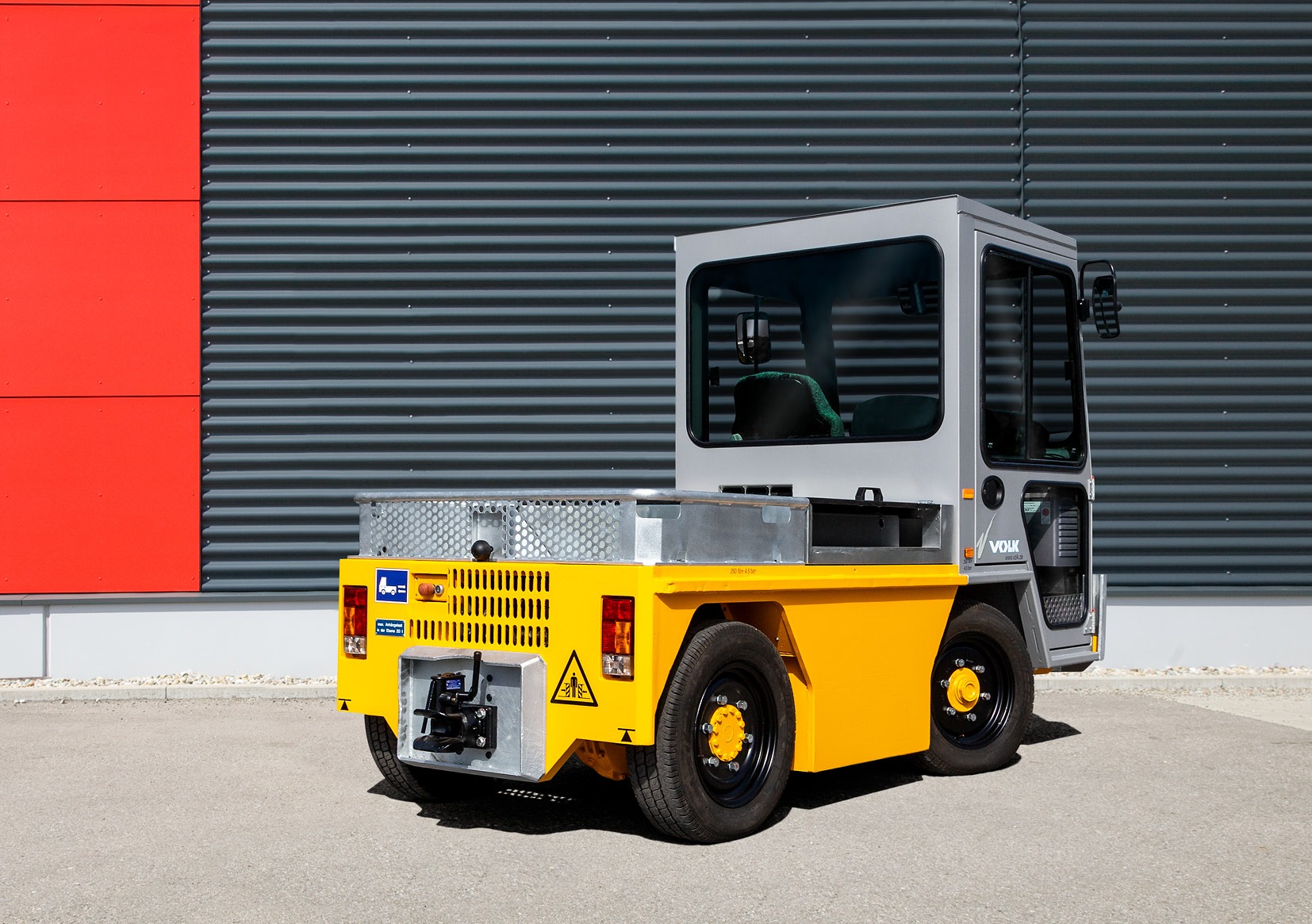

Image similar, original photo will follow

EFZ 25 N

Electric tow tractor

Used vehicle

Vehicle equipment

  • zinc dipping frame
  • solid steel front bumper
  • heater
  • defroster

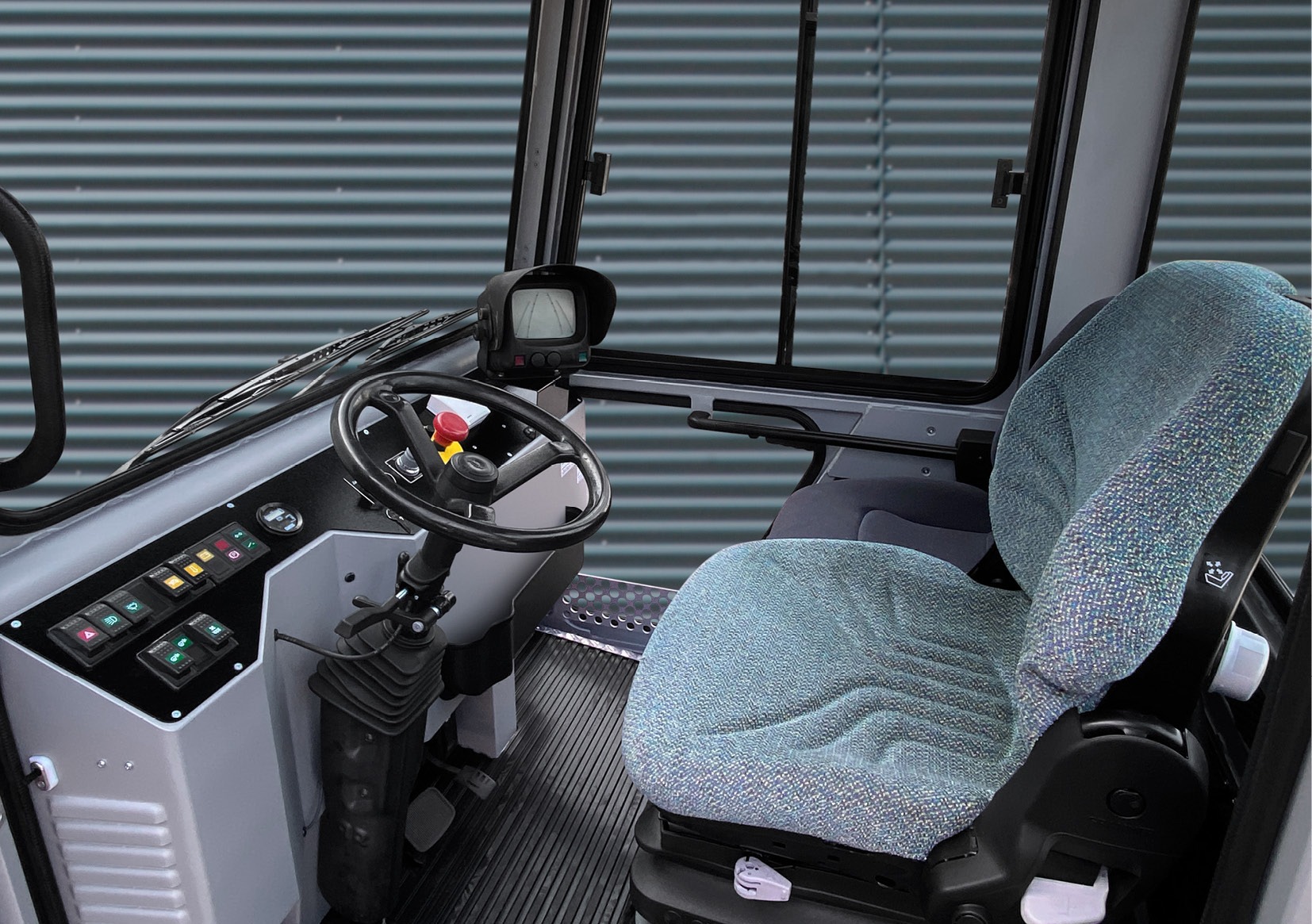

  • air supspended driver seat
  • co‐driver seat
  • inching control, rear side
  • crawling switch
  • video rear-view system for towing hitch
  • automatic towing hitch Rockinger
  • towing bar safety-catch
Vehicle data
Vehicle no.

FN262650

Year of construction

02/2003

Operating hours

n.a.

general overhaul

2020

Performance
Towing capacity

Maximum towing capacity

41.000 lbs

Drawbar pull

Peak performance (5 min rating)

2.700 lbf

Driving speed

without towed load

15,0 mph

Drive

Electric motor

Performance (60 min rating)

14,0 kW (ac)

Battery

Capacity

80 V / 560 Ah

Dimensions

Length

3.040 mm

Width

1.250 mm

Height

1.970 mm

Turning radius (outsided chassis)

3.465 mm

Weight

7.500 lbs
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
