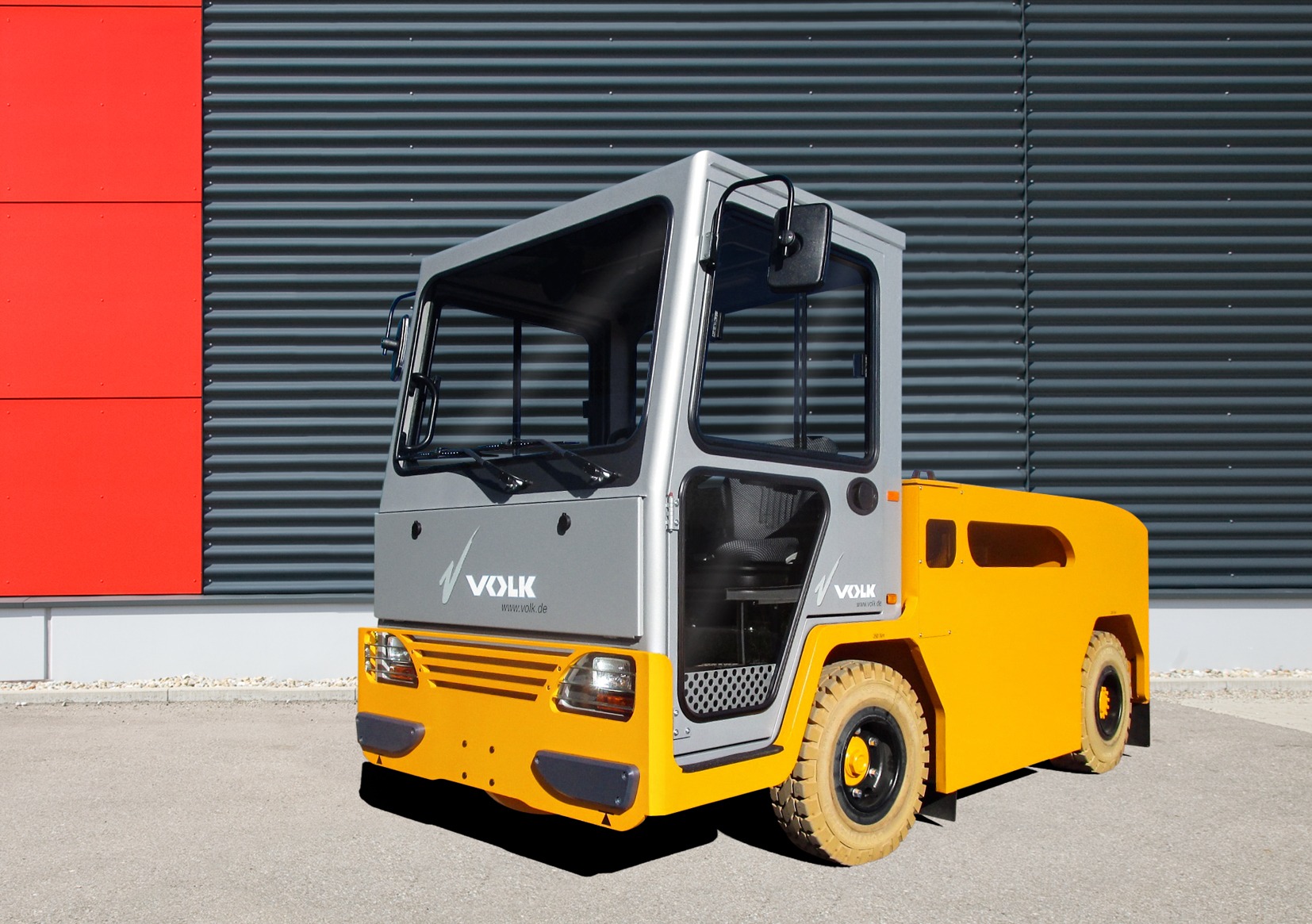

original picture

EFZ 60 N

Electric tow tractor

Used vehicle

Vehicle equipment

  • super-elastic tires non-marking
  • driver’s seat with air suspension
  • co-driver’s seat
  • crawling switch
  • defroster for windshield on driver’s side
  • towing hitch Rockinger
  • acoustic back-up alarm
  • washer system for windscreen wipers
  • battery 80V-6PzS-930Ah
  • inching control, rear side
Vehicle data
Vehicle no.

FN404926

Year of construction

12/2007

Operating hours

650

Performance
Towing capacity

Maximum towing capacity

132.000 lbs

Drawbar pull

Maximum drawbar pull (5 min rating)

7.600 lbf

Driving speed

without payload

13,0 mph

Drive

Electric motor

Performance (60 min rating)

20,0 kW (ac)

Battery

Capacity

80 V / 930 Ah

Dimensions

Length

3.540 mm

Width

1.500 mm

Height

2.100 mm

Platfrom: Length / Width

370 / 1.420 mm

Turning radius (outsided chassis)

4.130 mm

Weight

14.800 lbs
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
